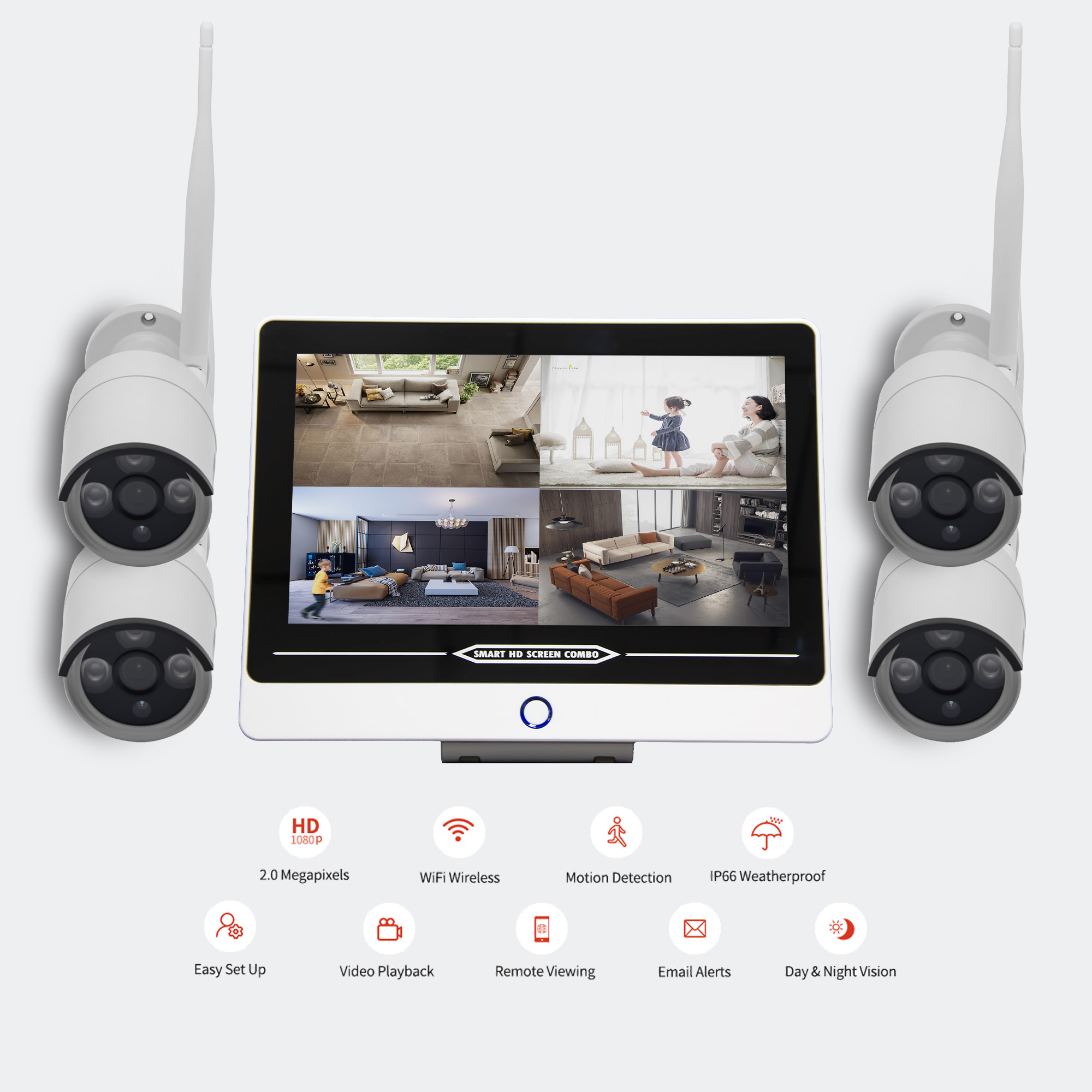

● 4CH Wireless 1080P H.265+ smart wifi camera
● Two in one integrated NVR & 12 inch Monitor
● Automatic Wireless Connection, plug and play
● In open space without itrefere transmission distance up to 800 meters
● One-push to configure
● Support alarm push motion detection and alarm output (voice/email/ FTP etc.)
● Support Android/Apple cell phone or pad by LAN & WAN visit and control
● P2P fluent and fast remote access
● Suit to homes, offices, small businesses & retail stores
● Easy to Install, User-Friendly Operation
| Model | US-WC204KM | |

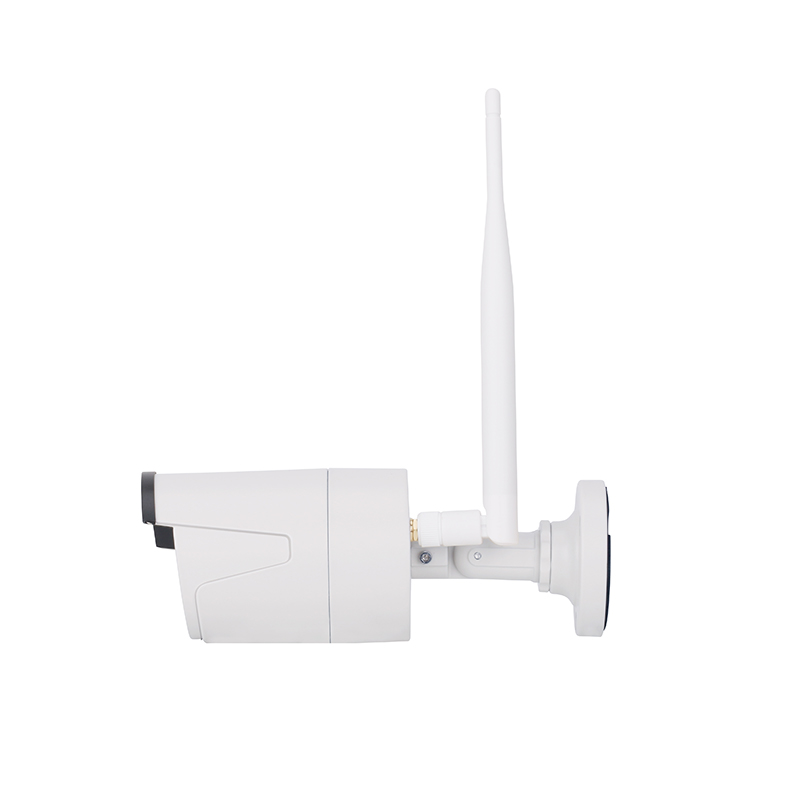

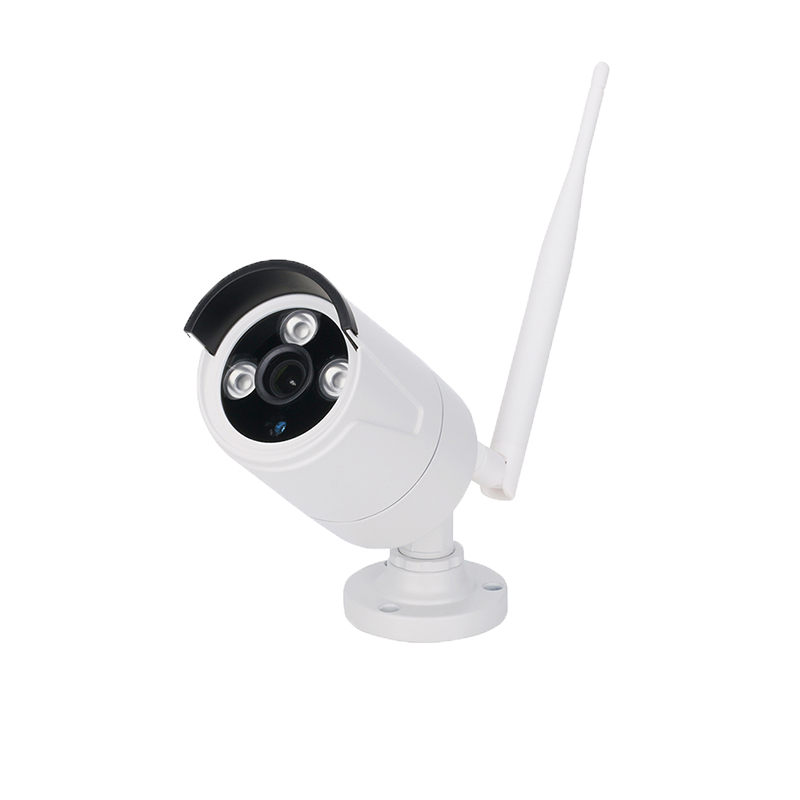

| Camera Spec | 2.0MP Wireless IP Camera | |
| Camera number | 4pcs | |
| Max.Image Resolution | 1920x1080@20fps | |
| Image Resolution | Main stream （1920x1080、1280×960、1280×720、720×576、640×480） | |
| sub-stream （640×480、352×288、320×240、176×144） | ||
| Image sensor | 1/2.9" 2.0M Pixel CMOS | |
| Lens | 4 mm, horizontal field of view: 75° | |
| Lens Mount | M12 | |
| Min. Illumination | Color：0.01Lux@(F1.2，AGC ON) | |
| B/W：0.001Lux@(F1.2，AGC ON）,0Lux @（IRled ON) | ||
| S / N ratio | ≥39dB | |
| Shutter speed | 1/5 - 1/20,000s， | |
| Day & Night | Day / Night / External control（IR Cut Filter） | |
| AGC | Auto / Manual | |
| White balance | Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp | |
| Wide dynamic range | Digtal Wide dynamic range | |
| Digital noise Reduction | 2DNR,3DNR | |
| Video Compression | H.265 Main Profile/H.264 Main Profile/M-JPEG | |
| Audio Compression | G711，PCM | |
| Bitrate | CBR/VBR, bitrate：32Kbps~10Mbps variable | |
| Motion detect | Support | |
| AI Feature | Human detection | |
| Privacy Zone Masking | 4 privacy masks programmable | |
| P2P | Android、IOS | |
| Protocols | TCP/IP，HTTP， NTP，IGMP， DHCP，UDP，SMTP，RTP，RTSP，ARP，DDNS，DNS，P2P | |
| Onvif | Non- Support | |
| Wireless | 2.4G Frequency | |
| Transmission distance :More than 800 meters with no obstacle， More than 30 meters if penetrate the wall， The actual transmission distance according to the situation | ||
| Power | 12VDC@0.12A | |
| Dimensions | 38x38x5mm | |
| Working Temperature | -30°C ~60°C, Humidity≤90%RH(Unsupport-condensing) | |
| NVR & Monitor Spec | ||

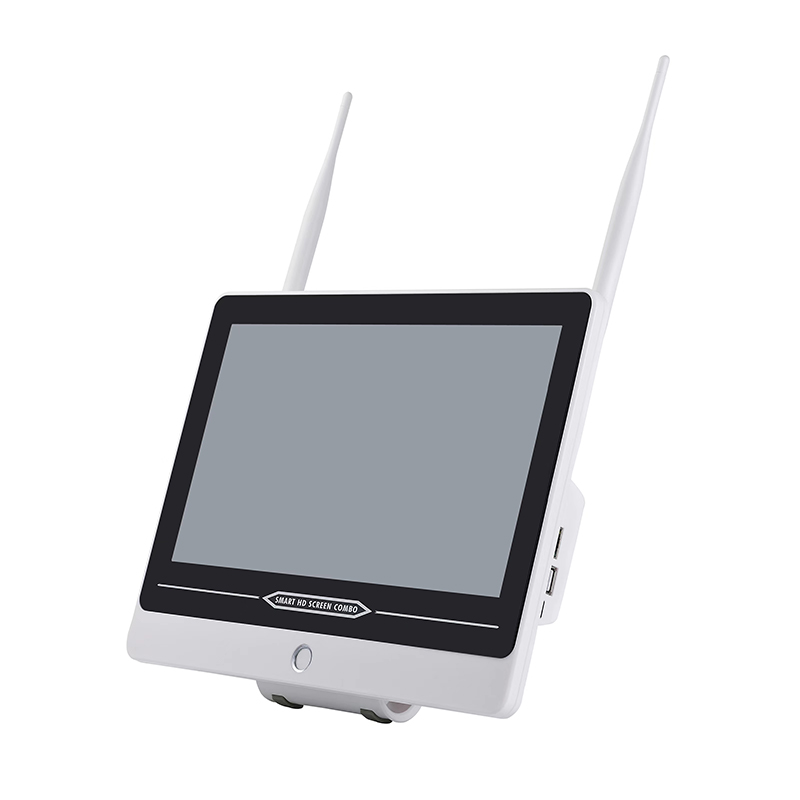

| Monitor | 12 in LCD screen | |
| NVR Spec | Operating System | Embedded Linux |
| Video | Video compression | H.265 High Profile/ H.264 Main Profile |
| Video output | 720P60,XGA,1080P60 | |
| Video input(IP) | 4*1080P/4*960P/4*720P | |
| Audio | Audio compression | G.711 |
| intercom | None | |
| Record & playback | Recording mode | Manual/Alarm/Video Detection/Continuous |
| Local Playback | 1*1080P | |
| Storage & Backup | Record Storage | network |
| Backup mode | Network backup, USB hard disk | |
| Network Control | Protocol | TCP/IP,HTTP,DHCP,UDP,RTP,RTSP,FTP,NTP,ONVIF,SADP,P2P |
| Wireless | Frequency | 2.4G |
| Antenna Structure | 2 × 2MIMO | |
| Distance | More than 800 meters with no obstacle，more than 30 meters if penetrate the wall， the actual transmission distance according to the situation | |
| Interface | Video output | 1ch HDMI, 1ch VGA output |
| Audio I/O | None | |
| Alarm I/O | None | |
| Network interface | 1*RJ45 10M/100M Adaptive Ethernet port | |
| USB | 2*USB 2.0 port | |
| Hard disk | 1 SATA(Up to 4TB) | |
| Other | Power supply | DC +12V /3A |
| Power Consumption | 5W（Without HDD） | |
| Work environment | Temperature:-10℃－＋55℃, Humidity:10%-90%RH | |
