All in one Thermal Camera

US-DM60I

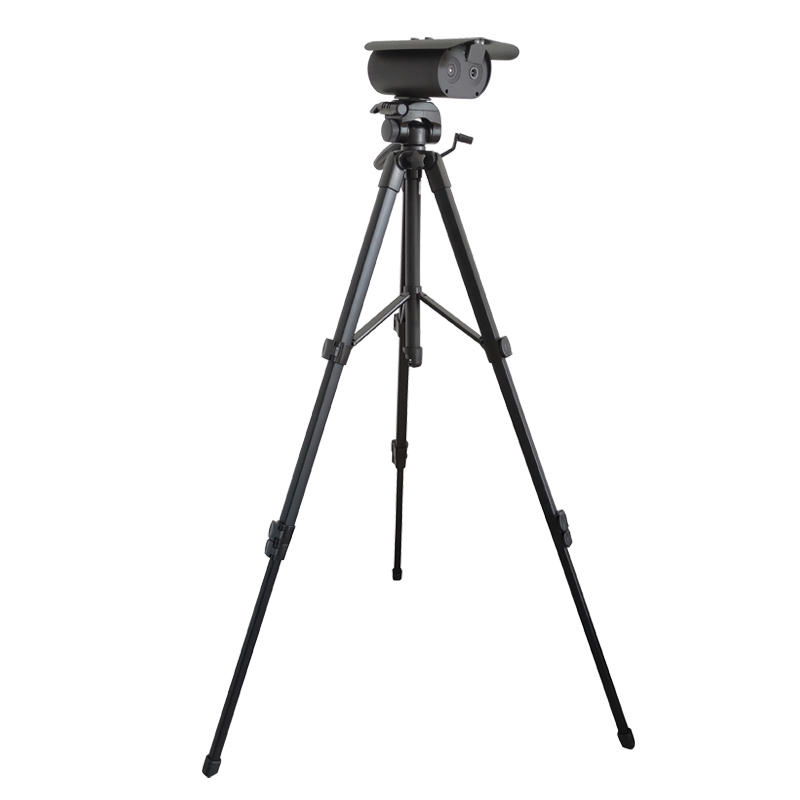

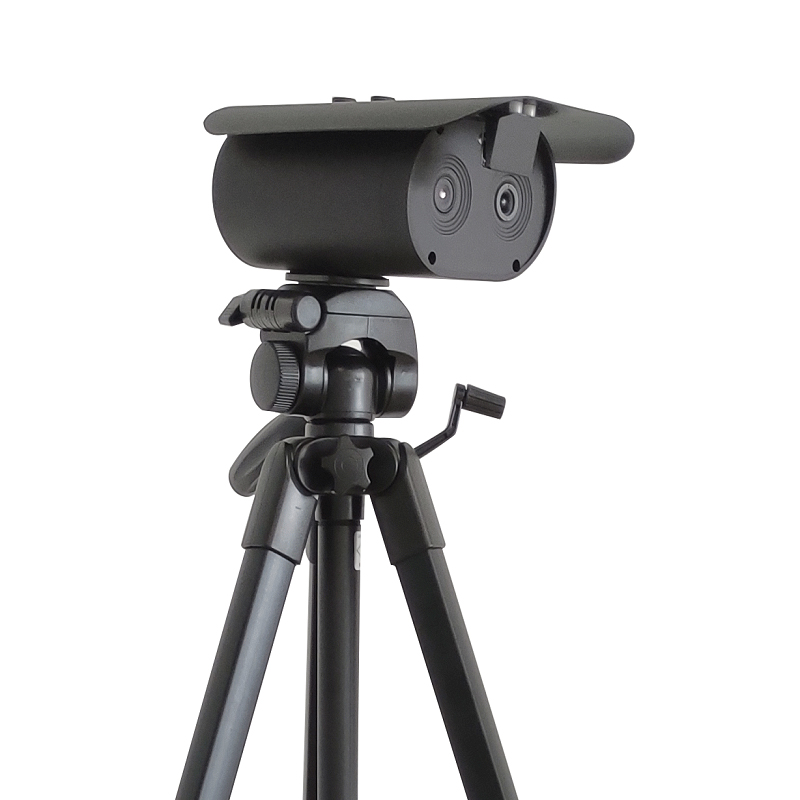

All in One Thermal Camera with Black Body

● Thermal : 160X120

● Artificial intelligence temperature measurement system, non-medical, human Industrial intelligence drive

● 1.5m-5m long-distance human body temperature detection;

● Camera + embedded motherboard + black body integrated structure

● Built-in black body, automatic correction

● Quickly detect the thermal temperature of the forehead in milliseconds, 0.2°C accuracy

● Large streams of people can be measured and detected within 0.05 seconds.

● Measurement can be carried out without the complete knowledge of the detected object.


Mode: US-DM60I

Temperature Measurement

Measurement   Range

20°c -50°c

Field Angle(Calculated Value)

40°(H) x 30°(V)

Calibration

Self-Calibration

Measurement   Distance

1.5-5m

Infrared Camera


Detector   Type

Uncoiled Infrared Array Sensor

Resolution

160X120(384*288 optional)

Pixel Pitch

17μm

NETD

≤60mkF/1,300K, 50Hz

Frame   Rate

15 Hz

Temperature Measurement Data Output

Full Range Temperature Output

People   Per Second

3-4 persons

Visible Camera

Resolution

1920*1080(2 M>illion Pixels)

Imaging   Device

1/2.7inch CMOS

Lens

6mm

Minimum   Illuminance0.01

LuColor Mode),0.001Lux(Black and   White Mode)

Signal   to Noise Ratio

>56dB

Other   Parameters

HAIRCUT   Automatic Switching, Backlight Compensation, Strong Light Suppression,

Automatic White Balance

Black body

Effective   radiation area

20mm*30mm

Area impassivity

0.96 ±0.02

implicature   range

(Ambient   temperature+5°C)~(50°C)

Temperature   resolution

0.01°C

Stable   accuracy

>±0.1°C

Heating time

<2 minute

Motherboard parameters

CPU   & SOC

64   bit 1.5GHz Quad-Core (28nm), Broad com BCM2711

Bluetooth

5.0

USB

USB 2.0*2/USB 3.0*2

HDMI

Micro HDMI*2 support 4K60

Powered by

Hype C(5V 3A)

Network

Wi-Fi 802.11AC,Gigabit

Multimedia

H.265(4K@60fps),   H.264(1080p@60fps,1080@30fps) Opening es,3.0 graphics)

Other Parameters

Installation   Environment

Indoor or Outdoor

Input   Power Supply

12VDC

Working Temperature

0-40

Size

230mmx142.6mmx88.5mm
